The FTTH Cable Production line is an integrated set of modules that converts glass fiber into completed drop and distribution cable products with consistent, repeatable quality.

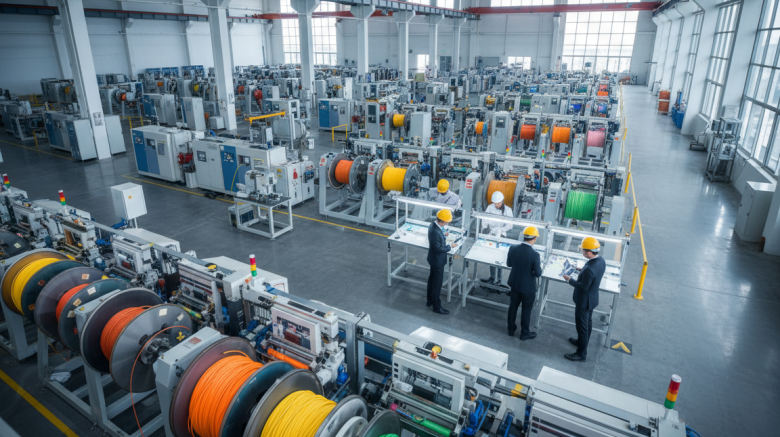

FTTH Cable Production Line
This opening section supports factory managers, production engineers, purchasing teams, and learners in the United States market who evaluate how factory manufacturing systems converts fine fiber into durable cables for service networks and communications infrastructure.
Fundamentally, the end-to-end objective is simple: protect the fiber, keep attenuation low, add strength for installation, and produce a cable that survives indoor and outdoor conditions.
Expert equipment means steady tension control, synchronized motion control, standardized process windows, and well-structured documentation for acceptance testing. This guide helps align the line setup, materials, and validation plan to the intended product instead of purchasing machines first and fixing the process later.
Readers will trace steps such as fiber handling and preparation, secondary coating/buffering, stranding, strength-member integration, jacketing (outer sheath extrusion), optional armor integration, and end-of-line testing and packaging.
Key takeaways include: A well-specified line cuts defects and ensures predictable delivery. Align the process before buying machines to reduce time and cost.
How A Modern Fiber Optic Cable Production Line Works
Where last-mile drop and distribution requirements meet shop-floor execution.
Modern production lines convert fine glass fiber into finished products used in United States broadband buildouts. Last-mile drop cable and ftth drop demand drives high volumes, so manufacturers emphasize consistent handling and standards compliance.
Core Modules & Material Flow
Material progresses through a defined sequence: pay-off feed → guiding + tensioning → secondary coating/color application → organization / SZ stranding → strength member delivery → jacketing/sheathing → cooling / curing → take-up and testing.
Modules And Outcomes
Consistent fiber handling reduces attenuation and maintains data and communications integrity. Consistent jacketing aids installation and connector preparation. In-line monitors detect loss events before reels ship.
- Indoor vs. outdoor: different jacket compounds and buffering.
- Armored designs add steel tape or wire for added crush and rodent resistance.
- Drop designs typically use tight-buffered fibers and easier connector preparation.
Buyers should view lines as modular. Factories add armoring or omit steps to match the product type. Output limits often come from curing and dimensional stability, not simply motor speed.
Define Your Product & Data Standards Before Equipment Purchase
Begin with a clear product map that defines the cable type, fiber/core count, service environment, and user scenarios. This early definition narrows which modules the line must include, from tight-buffer units to SZ stranding capability and jacket extrusion systems.
Select Standards, Measurable Targets
Choose fiber standards such as ITU-T G.652D class or bend-insensitive ITU-T G.657A1/A2 based on bend requirements and routing constraints. Define loss budgets, tensile targets, crush and bend limits, and environmental durability before selecting vendors.
- Map the exact product type and core/fiber count to define required modules and control needs.
- Set loss budgets and strength targets to steer material selection.
- List required materials (buffer polymers, jacket compounds) and verify U.S. sourcing availability.
Data Standards And Traceability, Validation
Translate targets into factory information: recorded process variables, lot traceability, and test reports customers require for acceptance. Use R&D pilot runs to validate settings and cut scale-up time.
Fiber Draw Tower
| Target | Manufacturing Implication | Common Action |
|---|---|---|
| Low attenuation | Tension and alignment control | In-line attenuation checks |
| High strength | Strength-element selection | Integrate aramid or metal |
| Bend resistance | Choice of fiber type | Adopt G.657 variants |
Build Quality Into The Optical Fiber: Core, Cladding & Coating Essentials
Strong optical performance begins in the glass, where core purity and cladding design define the boundaries for loss.
Core + cladding make up the core layer structure: a solid, ultra-pure silica core transports light while a lower-index cladding confines it. That geometry is the basis for low-loss transmission and stable optical behavior in finished cables.
From Preform To Fiber Draw
Manufacturing starts with preform laydown and consolidation. Removing moisture in a high-temperature furnace reduces defects that raise attenuation.
Drawing pulls the glass into a micron-scale strand. Geometry control at this stage directly supports stable attenuation and predictable transmission performance. One blank can produce roughly 5 km of fiber, so process stability saves time and cost.
Primary Coating And Color Coding
Primary coating protects against scratches and handling damage; it is not the main strength element. Color identification simplifies splicing, troubleshooting, and downstream fiber management.
- Preform consolidation: remove contaminants and moisture.
- Draw: control diameter and tension to keep loss low.
- Coating and color: protect and label each fiber.
| Layer Type | Purpose | Buyer check |
|---|---|---|
| Core | Carry light with minimal attenuation | Specify purity and loss specs |
| Optical cladding | Confine light and control modal behavior | Confirm index profile and geometry |
| Primary coating layer | Scratch protection and color ID | Check adhesion and color coding |
FTTH Cable Production: Step-By-Step Line Setup From Buffering To Sheathing
A workable line setup moves each fiber from pay-off through buffering, stranding, and the outer jacket to a finished reel.
Secondary coating and fiber coloring stations apply dual-layer UV-cured coatings (≈250 µm) and 1–12 channel color coding for identification and traceability. Consistent UV cure rates and stable web tension reduce mix-ups and rework.
Buffering, Materials
Tight buffering (600–900 µm) improves handling and simplifies connector work. Choosing Hytrel, PVC, or LSZH changes flexibility, temperature range, and flame/smoke behavior.
SZ Stranding & Organization
SZ stranding uses an alternating lay to balance geometry and provide flexibility. Servo control (up to 24 fibers) keeps lay pitch consistent and lowers loss risk.
Strength Members & Jacketing
Aramid yarn is the common tensile element; it provides pull strength without stressing fibers during installation.
Outer jacket extrusion using PVC, PE, or LSZH follows. Speeds typically range 60–90 m/min and require tight OD and concentricity control.
Armoring And Control Points
If crush or rodent resistance is needed, add steel tape or wire armor with adjustable tension control. Operators track tension, cure state, concentricity, OD, and cooling to maintain quality.
| Stage | Key Control | Typical Range |
|---|---|---|
| Secondary coating | UV cure plus tension | ≈250 µm, high curing consistency |
| Tight buffering | Material selection | 600–900 µm (Hytrel/PVC/LSZH) |
| Outer sheathing | OD and concentricity | 60–90 m/min |
Optimize Production Speed & Process Control With Modern Automation
When factories run for 24/7 output, synchronized controls and tension systems become the backbone of reliable manufacturing.
PLC, HMI And Closed-Loop Tension For Steady Operation
Modern lines use Siemens PLC + HMI platforms to synchronize modules, manage recipes, and log process information. Closed-loop tension control protects fiber during start, stop, and speed changes.
Fiber Draw Tower
Match Speed To Curing, Dimensional Control
Line speed often caps where curing, cooling, or extrusion dimensional control cannot keep up. UV cure completeness, water trough stability, and chill capacity set the true ceiling.
Layout, Changeover, Procurement
Plant layout impacts uptime: proper pay-off/take-up placement plus protected fiber paths reduce damage and shorten changeovers.
- Design quick-change tooling and documented setup steps for faster changeover.
- When ordering equipment, specify industrial power (380 V AC ±10%) and typical load ≤55 kW.
- Demand remote diagnostics, spare parts availability, and fast service response from the equipment company.
| Priority | Operational Outcome | Typical Goal |
|---|---|---|
| Module synchronization | Less scrap, more repeatable runs | Siemens PLC/HMI platform |
| Tension control | Protects fiber; stable loss | Closed-loop with high accuracy |
| Layout & changeover | Shorter downtime | Quick-change tooling, staging |
Testing And Quality Control To Reduce Loss And Improve Delivery Reliability
Strong testing and clear QC turn raw fiber into reliable, field-ready cable reels.
Begin with optical verification. Inline attenuation testing and return loss checks confirm signal performance before reels exit the line.
Optical Checks, Signal Integrity
Attenuation testing is the main guardrail against performance complaints. Higher loss readings often indicate handling damage, microbends, or contamination.
Return loss checks focus on reflections that impact sensitive links and tight network margins.
Mechanical And Environmental Validation
- Tensile pull tests verify strength members and installation safety.
- Crush and bend tests mimic real-world stresses during installation.
- Temperature cycling, moisture soak, and vibration tests reduce risk for outdoor and aerial routes.
| Test | Purpose | Typical Result |
|---|---|---|
| Loss test | Measure attenuation per km | Pass/fail vs. spec |
| Mechanical tests | Validate pull, crush, and bend | Installation rating |
| Environmental validation | Simulate field conditions | Durability verification |
Traceability ties raw material lots, in-line data, and final test results to reel IDs. Proper reeling, labeling, and protective packaging protect quality and accelerate customer acceptance and delivery.
Wrap-Up
A strong manufacturing plan connects product targets with the line modules and control limits needed for reliable output. Define the intended FTTH product, service environment, and measurable specs before selecting equipment or layout.
Fiber optic fundamentals — core, cladding, and coating — set the optic baseline. Careful upstream handling preserves data integrity and keeps final quality within acceptance limits.
Set buffering, organization/stranding, strength members, and jacket selection to match installation conditions. Use automation and closed-loop controls to maintain speed, reduce scrap, and keep delivery predictable in U.S. markets.
Operational discipline matters: use comprehensive testing, reel-level traceability, and documented quality systems so customers can accept reels fast. Next step: convert these points into a purchasing checklist (spec targets, utilities, layout, and acceptance tests) before requesting quotes or conducting trials.
